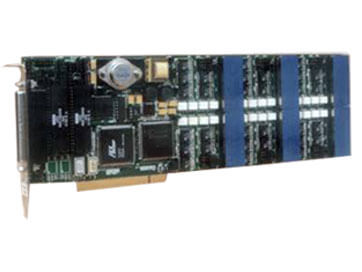

ATS-PCI-1553-1 MIL-STD-1553B PCI Card
Features:

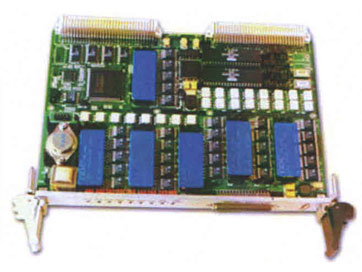

- Available on VME64x bus architecture
- Upto 2 measurement and 6 simulation channels on single card
- Common on-board oscillator for reference signal generator
Measurement Function
- Internally synthesized reference
- Software programmable 10-,12-,14- or 16-bit resolutions
- Input Amplitudes: 2 Vrms L-L, 11.8 Vrms L-L, or 90 Vrms L-L
- Incremental Encoder Emulation Or Velocity Output
- transformer Isolation for all inputs channels
Simulation Function
- Output Amplitudes 11.8 Vrms L-L for Synchro or Resolver for simulation function
- Optional Transformer Isolation
- Programmable Two-Speed Ratio
- Software driver support for windows 2000, windows XP, Linux, RT Linux
Our products
Features:
- Available on VME64x bus architectures
- Up to 2 measurement and 6 simulation channels on single card
- Common On-board Oscillator for reference signal generation
- Internally Synthesized Reference
- Software programmable 10-, 12-, 14- or 16-bit resolution
- Input amplitudes: 2 Vrms L- L, 11.8 Vrms L- L, or 90 Vrms L- L
- Incremental Encoder Emulation or Velocity Output
- Transformer isolation for all input channels
