Features:

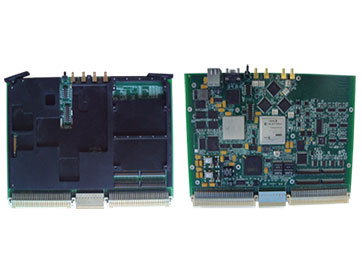

• 6U VME64x single slot module
• Based on Freescale MPC8548 PowerPC processor
• e500 Processor Core @ 1 Ghz
• 1 GB of DDR2 SDRAM with ECC
• 128 MB NOR flash (Program Memory)
• 1GB NAND flash (Storage/Application Memory)
• 1 MB NVRAM
• Two Gigabit Ethernet ports
• Four Multiprotocol RS232/RS422 serial ports
• Two USB 2.0 Host ports (Optional)
• One PMC mezzanine site
• Four Temperature sensors
• Real time clock
• External Watchdog timer and Reset Generator
• Voltage monitoring and power sequencer
• On-board Flash FPGA
• Analog-to-Digital Conversion Block
• Operating temperature -40ºC to +85ºC
