ARINC PC/104-Plus Interface Card

banner

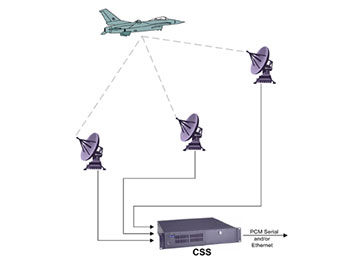

The NetAcquire product family supports telemetry. applications as well as a wide range of other mission-critical aerospace application areas. Regardless of the application, each member of the NetAcquire product family combines three key technologies: flexible data acquisition, real-time signal processing, and high-speed networking. Together NetAcquire’s products offer low-cost network enabled COTS solutions for many high performance distributed test and measurement applications that could previously be supported only by expensive one-off custom equipment. The NetAcquire product family consists of over sixty off-the-shelf configurations designed to support a wide variety of applications.

Feature

  • Channels: 2 serial in, 2 serial out (expansion to 64 channels)
  • Data Rate: bit rates to 2, 3, 10, 20, 30, 40, 60, and 100 Mbps
  • Electrical: RS-422, RS-232, TTL, ECL, LVDS
  • Parameters: Software-selectable word width, bit rate, clock recovery, NRZ-L/M/S and Biphase-L/M/S bit encoding, MSB/LSB data alignment, sync/async/HDLC, data polarity
  • Frame Synchronization: Sync word, width, mask, tolerance, strategy, and frame size parameters
  • Data Decommutation: advanced frame layout with subcommutation, embedded formats, and CCSDS support
