Bit Syncs/Frame Syncs

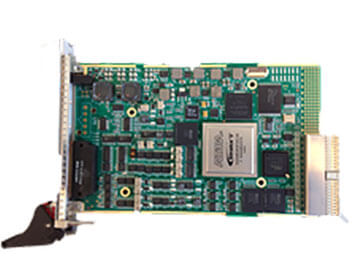

Bald Eagle PCM-cPCI™
Available Q1 - 2015 40 Mbps PCM Processor
- 3rd Generation totally integrated Bald Eagle PCM Processor for cPCI/PXI 3U housings.
- Digital Bit Sync/Frame Sync/PCM Decom/PCM Simulator/IRIG Time Code Reader.
- Advances Ulyssix’s PCM processing capability by using the cPCI/PXI 3U form factor.
- Runs under both the Ulyssix Tarsus PCM software and optionally using DEWESoft software suite.
- User-friendly and intuitive software program included with optional DEWESoft full Acquistion and Analysis software.

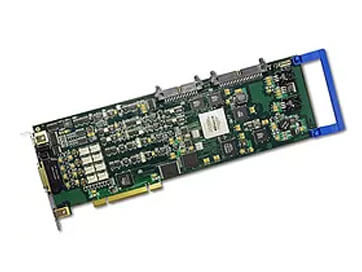

TarsusHS-PCI-01™
Available Q1 - 2015 Bit Sync/Frame Sync/Frame Archiver/Decom/PCM Simulator
- 33 Mbps Digital Bit Synchronizer.
- Two on board DAC's.
- Frame Synchronizer and Archiver.
- IRIG Time Code Reader.
- IRIG Class II Decommutator.
- PCM Simulator.
- Uses Altera Stratix III FPGA's.
- Real Time and Post Playback Software Capabilities.
TarsusHS-PCI-02™
Dual Channel Bit Sync/Frame Sync/Archiver/IRIG Time Reader
- Dual 33 Mbps Digital Bit Synchronizer.
- Dual Frame Synchronizer.
- Accepts all IRIG 106-01 Code Types.
- Fully Programmable Frame Sync word lengths from 16 to 33 bits.
- Subframe synchronization capability.
- Uses Altera Stratix III FPGA's.
- Runs under the Tarsus Software Suite.

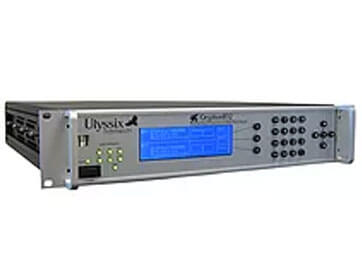

Gryphon100™ Series
Dual Channel Bit Sync/Frame Sync/Archiver/IRIG Time Reader
- 33 Mbps Digital Bit Synchronizer.
- Frame Synchronizer.
- Up to 4 channels per unit.
- Frame Archiver capability.
- Front LCD graphic display and keypad for local control.
- RS232 and Ethernet interface.
- Uses TarsusHS-PCI-02™ boards.
- Compact 2U rackmount housing.
